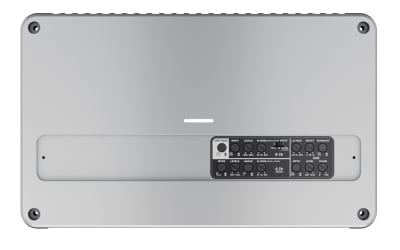

Hertz Marine VENEZIA V5

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
5Ch 130 W x 4 (4Ω) + 490 x 1 (4Ω)
5Ch 220 W x 4 (2Ω) + 820 W x 1 (2Ω)
3Ch 440 W x 2 (4Ω) + 490 W x 1 (4Ω)
3Ch 440 W x 2 (4Ω) + 820 W x 1 (2Ω)
Total Power RMS 1700 W
Channels: 5 - 3
Power supply voltage: 9 - 16 VDC
ldling current (power ON/OFF): 1.8 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 70 A
Remote In: 7 - 15 VDC - 1 mA
Distortion - THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 - 42 kHz
S/N Ratlo (A weighted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω): 130
Pre-ln sensitivity: 0.2 - 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers: yes
Inputs: A Ch. Pre in
B Ch: Pre in
Sub Ch: Pre in
Pre Out: No
A Ch. filters: Yes
By-Pass: Yes
Hi-Pass : 50 - 500 Hz / 500 Hz - 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 - 500 Hz @ 12 dB/Oct
Band-Pass: 50 - 500 Hz / 500 Hz - 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 - 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 - 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust): (0 - 12) dB
